Hall Flow Meter

AS-300 Hall Flowmeter (Funnel) /Hall Flow Meter (Funnel) determines both Flow Rate and Apparent Density of free-flowing metallic powders as well as other fine powders in various particle size distributions with calibrated hall flowmeter funnel.

hall flowmeter manual – hall flowmeter price hall flowmeter funnelhall flowcarney flowmetal powder flow testgustavsson flowmeter

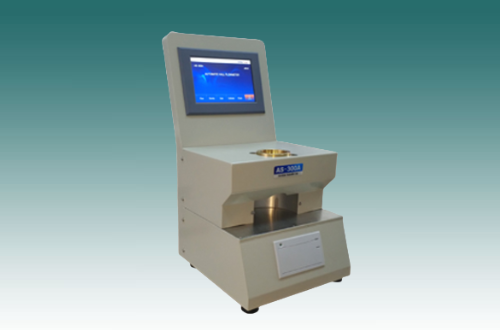

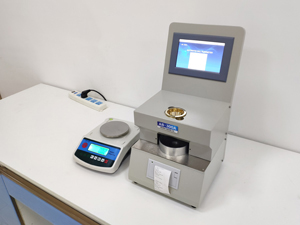

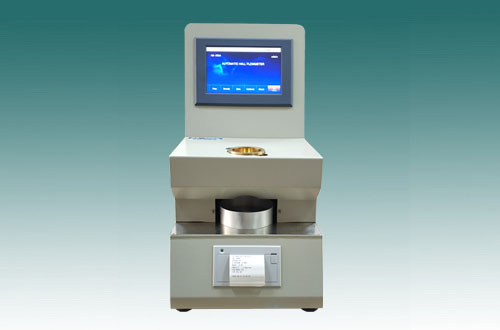

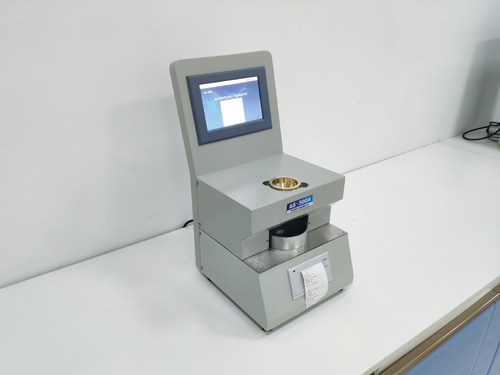

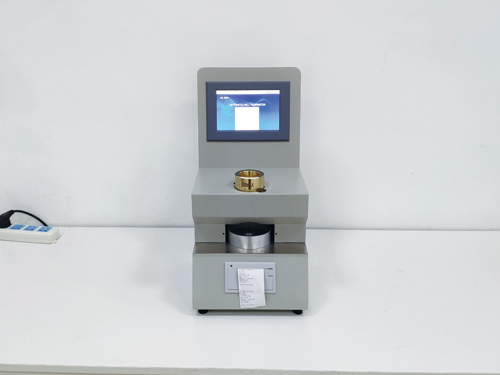

AS-300 Hall Flow meter includes AS-300A Automatic Hall Flowmeter and AS-300M Manual Hall flowmeter, both conform to all current international standards
ASTM B213 Standard Test Method for Flow Rate of Metal Powders
ISO 4490 Metallic powders – Determination of flow rate by means of a calibrated funnel (Hall Flowmeter)
-MPIF No.3
ASTM B212 Standard Test Method for Apparent Density of Free Flowing Metal Powders Using the Hall Flowmeter Funnel
-MPIF No.4 Std. 04—Apparent Density of Free-Flowing Metal Powders Using the Hall Apparatus
ISO No. 3923-1 Metallic powders – Determination of apparent density – Part 1 Funnel method

In addition AS-300 determines Apparent Density of non-free-flowing powers with Carney Funnel according to International Standards
ASTM B417 Standard Test Method for Apparent Density of Non-Free-Flowing Metal Powders Using the Carney Funnel
-MPIF No.28
ISO No.3923-1

Pictures



2017-4-21 manual hall flowmeter
2017-4-10 hall flowmeter key size requirement



Principle

Flow Rate
AS-300 Hall Flowmeter Funnel determines the flow rate by measuring the time taken by 50 gram of a metal powder to flow through a calibrated hall flowmeter funnel/orifice of standardized dimensions(0.1 inch/2.5 mm) according to International Standards.
Apparent Density of free-flowing powders
AS-300 Hall Flowmeter determines the apparent density by permitting a volume or certain quantity of powder in a loose condition to flow from a hall flowmeter funnel orifice Diameter 0.1 inch/2.5 mm into a specified density cup of definite volume(25 cm³) under controlled conditions. The mass of powder per unit volume (the ratio between the mass and the volume) is recorded and reported as apparent density.
Apparent Density of non-free-flowing powders
AS-300 determines the apparent density by permitting a volume or certain quantity of powder in a loose condition to flow from a Carney funnel diameter 0.2 inch/5.0 mm into a specified density cup of definite volume(25 cm³) under controlled conditions. The mass of powder per unit volume (the ratio between the mass and the volume) is recorded and reported as apparent density.

Apparatus

Powder Hall Flowmeter Funnel/Calibrated flowmeter funnel
Stand and horizontal vibration-free base
Density cup/Cylindrical Cup
Timing Device/Stopwatch
Chinese Emery Grit(optional)
Carney Funnel(optional)
Balance(optional)
Spatula
(Above apparatus are subject to quotation)

Applications

Powder metallurgy, metallic powders, food powders, cement powders, plastic powders, rubber powders, ceramic powders, pharmaceutical powders etc.

Manufacturer

-HMK Test is a world leading and reliable supplier Hall Flowmeter/Hall Flow Meter Funnels and Carney Funnels. All the metallic parts are processed and supplied by qualified subcontractor according to International Standards in order to make the unit accurate and robust for sale to satisfy the user’s requirement at cost-effective hall flow meter price.

-HMK Test is also a major research participant in the interlaboratory study of the flow of Chinese Emery. Chinese Emery is used to calibrate a hall flowmeter funnel by the manufacturers.

-HMK Test is also the original manufacturer of Chinese Emery according to ASTM B213 and other international standards using such certified reference material.

Demo Video

Hall Flow Meter

Hall flowmeter News

2017-07-01 What instrument is Hall flow meter like?
2017-04-10 What does a hall flowmeter consist of ?
2017-03-21 Does standard test method determine the flow rate of all the metal powders?
