AIR-200 Air Jet Sieve

AIR JET SIEVES

AIR-200 Air jet sieve is a particle size analyzing machine that works in advanced air jet sieve principle for sieve analysis. AIR-200 is a micron air jet sieve (measuring 10 µm-~ 4 mm) equipped with a patented rotating slotted nozzle.  AIR-200 air jet sieve is a particle analysis equipment uses a vacuum to generate negative pressure in order to effectively measure particle size. The diameter of the sieving tank is 200/203 mm designed for 8 inch air jet test sieve both 1″ or 2″ high sieve available, stainless steel frame and mesh. It suits powdered materials that require particular dispersion and dis-agglomeration very much. AIR-200 air jet sieve has same performance to ALPINE air jet sieve and HOSOKAWA air jet sieve analyzer.HMK-200 is specially designed for pharmaceutical applications, HMKTest develop AIR-200 Standard air jet sieve and HMK-200 Inteliggent air jet sieve . All air jet sieve screens is ASTM E11 Compliance grade.

IMAGES

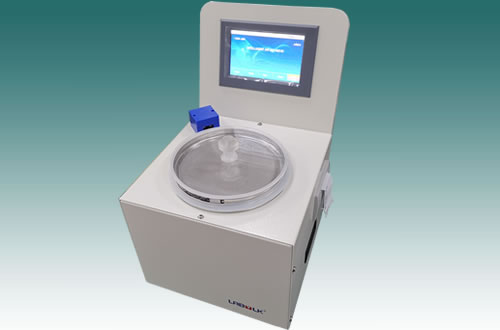

HMK-200 Intelligent Air Jet Sieve P/N 51598

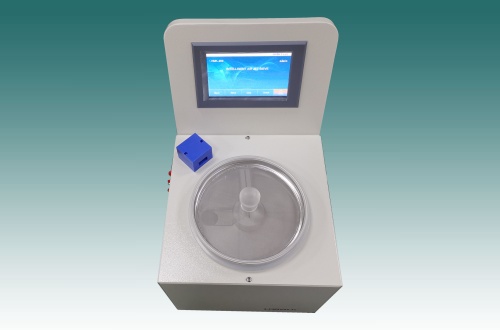

AIR-200 Standard Air Jet Sieve P/N 51298A

AIR-200 Standard Air Jet Sieve, HOSOKAWA Alpine Mikro Air Jet Sieve

AIR-200 Standard Air Jet Sieve, HOSOKAWA Alpine Mikro Air Jet Sieve

SPECIFICATIONS

  • Nozzle Rotation: 18 rpm
  • Test sieve 200mm/203 in diameter
  • Sieving Time: Timed set up to 99m 59s
  • Dimensions: W35 x D35 x H55 cm
  • Power: 220V/110V 50/60Hz 25W
  • Weight: 11.8Kg
  • Sieving Range: 15 to 5,000 micron
  • Sample weight: 0.1 to 2,000 grams

FEATURES

  • Work with  standard test sieves in calibration grade
  • More efficient than mechanical test sieve shaker
  • Dis-agglomerate particles by collision to acrylic glass lid effectively
  • Operating with international standard 200/203 mm standard test sieves
  • Save sieving time
  • Suits particles from as small as 5 um up to 5,000 um or even lower (as per particles)
  • Safe operation
  • Small and compact size
  • Timed control from 0 up to 99 minutes 59 seconds
  • Patented air nozzle generates turbine inside and clean tank simultaneously

APPLICATIONS

Pharmaceutical materials,Plastics,Powder coating,Ceramics ,Chemical products,Cinnamon,Cork,Cosmetics,Dental ceramics,Face powder, Flour, Food, Gypsum, Limestone, Minerals, Nutmeg, Pigments,Rubber,Sandstone,Soy flour,Sugar,Tea,Toner,Washing powder,General industrial etc.

PRICE

Price of HMKTest air jet sieving machine is cost-effective.

AIR JET SIEVE FAQS

  • What kind of powdered materials suitable to be sieved by an air jet sieve?
    Air jet sieves for fine powder materials such as smaller than 75 micronmeters.
  • What kind of particle size analysis that uses air-driven force?
    Air jet sieving machine
  • What is mesh size for 20 micrometer air jet test sieve?
    Mesh 635
  • How to keep airtight between air jet test sieves and air jet sieve?
    A special sealing gaskets is fitted between air jet test sieves and air jet sieving machine.
  • What is material of frames and mesh of air jet test sieves?
    The air jet test sieves are made of stainless steel both in frame and mesh.
  • How many grades of Air Jet Test Sieves?
    The air jet test sieves are divided into three grades: compliance, inspection and calibration.
  • What are the components of the air jet sieving instrument?
    The air jet sieving instrument consists of operation panel, sieve plate, standard sieve, nozzle, motor and vacuum cleaner.Operation Panel now AIR-200 air jet sieve (51098A and 51298A) uses the most advanced touch panel 7 inches internationally.The sieve plate is generally adapted to the 8-inch test sieves, that is, the diameter of 203 mm standard sieve,in the domestic general selection of 200 mm diameter standard sieve through the sealing ring to adapt to international standards and sieve plate.Air jet sieve nozzle can be optional stainless steel,which will greatly enhance its safety and corrosion resistance,

MANUFACTURERS

HMKTest is first China manufacture of air jet sieves.

AIR-200 Air Jet Sieve P/N 51298A

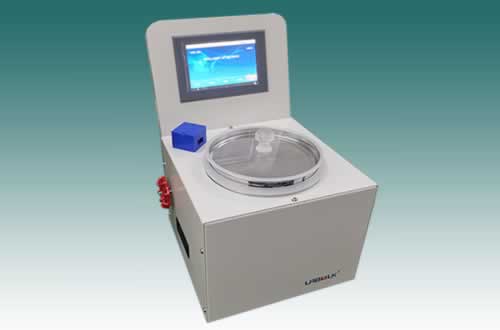

HMK-200 Economic Air Jet Sieve P/N 51098

Air jet sieve https://www.hmk-test.com
