AS-200 Scott Volumeter and LABULK Brand Bulk Density Testers

2017-4-23

Overview

AS-200 Scott volumeter  and Bulk Density Tester Apparent density meter determines bulk density of powders according to

International Standard ISO 3923 – 2 Metallic powders – Determination of apparent density – Part 2: Scott volumeter method.
USP Chapter 616 Bulk Density and Tapped Density of Powders Method II-Measurement in a Volumeter
ASTM B 329 Standard Test Method for Apparent Density of Metal Powders and Compounds Using the Scott Volumeter.

It is applicable to powders including metal powders, compounds, paint, pigment, refractory metals etc.

scott volumeter pricescott volumeter supplierbulk density testerapparent densitytap density

Pictures

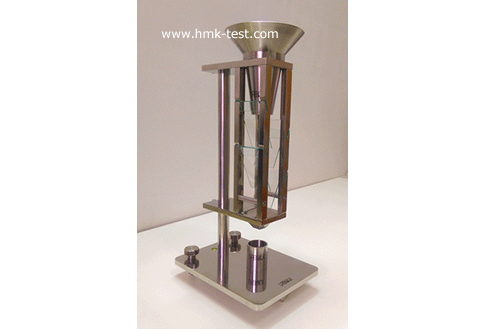

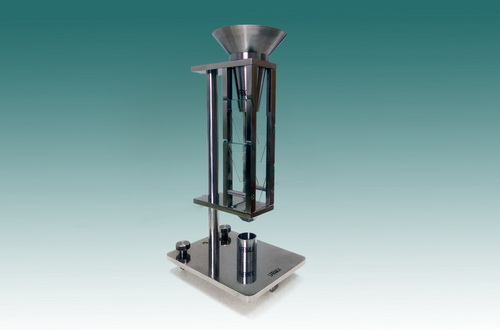

2017-4-11 stainless steel scott volumeter

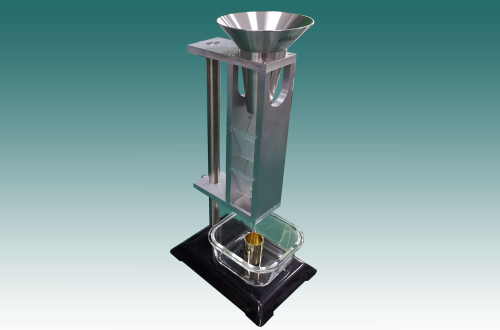

2017-4-1 old design metallic scott volumeter
2016-5-8 scott volumeter top funnel with sieve

Principle

Measurement of the mass of a certain quantity of powder which in a loose condition exactly fills a cup of known volume. The loose condition is obtained by using an apparent density tester, when filling the cup, by cascading the powder over a series of inclined plates in a Scott volumeter/Apparent Density Tester. The ratio between the mass and the volume represents the apparent density. This is the definition of the apparent density obtained by apparent density tester.

Apparatus Consists Of

-A machined Top Funnel integrated with a 18-mesh stainless steel screen
A Baffle Box containing 4 glass baffles to disperse the powder during test
A square Bottom Funnel to guide the powder into the receiving density cup

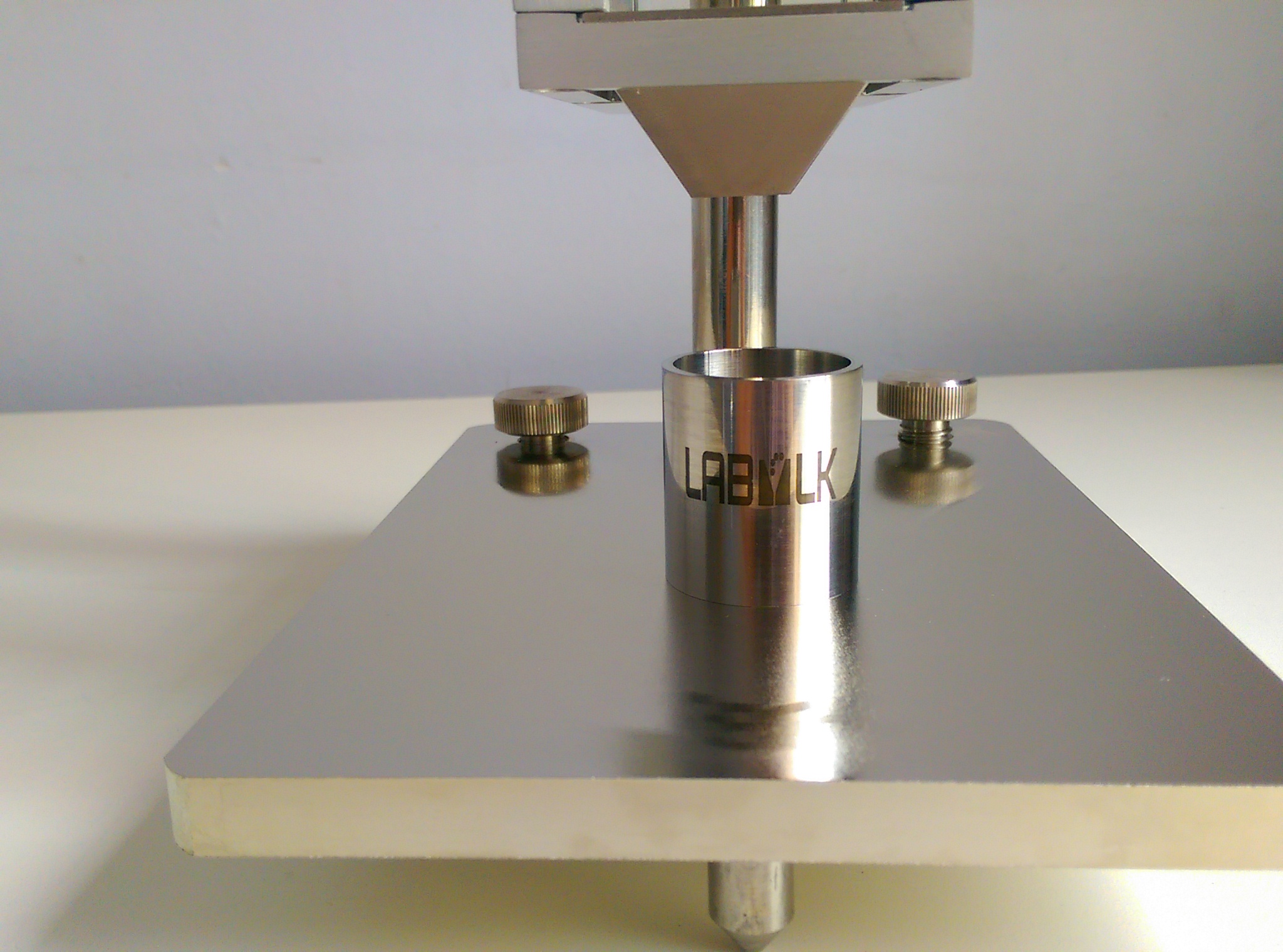

A receiving Cylindrical Density Cup with calibrated volume 25.00±0.03 ml
A receiving Square Density Cup with calibrated volume 16.39±0.05 ml (optional)
A Stand to support the top funnel and baffle box. There is a flexible pin on the stand pole to control the baffle box up and down in order to realize the required height between the square funnel and the density cup


Other Bulk Density Testers

-Abrasive Bulk Density Tester
Aluminium Oxide Bulk Density Tester
Catalyst Bulk Density Tester
Compounds Bulk Density Tester
Dried Milk Bulk Density Tester
Activated Carbon Bulk Density Tester
-Pharmaceutical Bulk Density Tester

More please visit www.labulk.com

Applications

It is applicable to powders including metal powders, compounds, paint, pigment, refractory metals etc. that will not flow freely through a 5 mm orifice (see ISO 3923-1)

Manufacturer

HMK Test is a world leading and reliable manufacturer of Scott Volumeters. All the metallic parts are processed and supplied by qualified subcontractor according to International Standards in order to make the unit accurate and robust to satisfy the user’s requirement at cost-effective basis.

Demo Video

LABULK Bulk Density Testers

Other Bulk Density Testers

www.labulk.com
