LABULK 0335 Intelligent Tapped Density Tester

TAP DENSITY TESTER

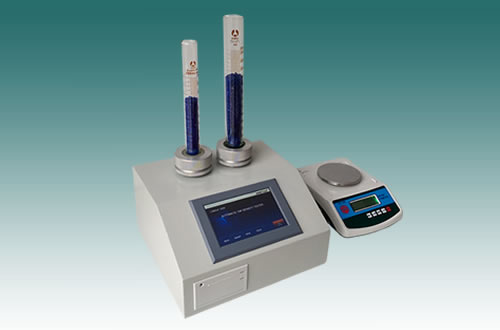

LABULK 0335 Intelligent Tap Density Tester is used to measure tapped density or packed density of powders, as well as granulated or flaked materials by automatically standardized and repeatable procedures. LABULK 0335 tap density equipment consists of 7 inch broad LCD panel, micro controller, printer, balance, glass cylinder and holder as well as sound acoustic cabinet. LABULK 0335 tapped density apparatus features easy operation, compact in size, light in weight, tapping height and speed controllable, tap density results savable and printable, it also output flowability data automatically such as Hausner Ratio and Compressibility Index(Carr compressibility). It conforms to all relevant international standards and being widely used in metal, pharma, food, chemical etc industries. LABULK 0335 has become the most price performance ratio tap density tester for sale. LABULK 0335 conforms to all international standards such as USP 616, ASTM B527 ISO 787/11 etc.

LABULK 0335 tap density tester upgrades from economic AS-100 tap density tester, price unchanged.

LABULK 0335 Intelligent Tap Density Tester P/N 033598

LABULK 0335 Intelligent Tap Density Tester P/N 33598

TAP DENSITY TESTER NEWS



TAP DENSITY TESTER PICTURES

LABULK 0335 Intelligent Tapped Density Tester P/N 033598



SPECIFICATIONS

• Test Report Output:Integrated Micro Printer
• Operation: 7 inch large touch LCD screen
• Speed(Variable): USP EP and ASTM
• Drop Height(Variable) : USP EP and ASTM
• Accuracy:< 1 tap of 10,000 taps
• Input power: AC 220V/110V 60Hz
• Dimensions:35.8 cm W x 51.6 cm H x 29.7 cm D (* height with 100 mL cylinder)
• Weight: 13.8 kgs net; 20 kgs gross

LABULK 0335 Intelligent Tapped Density Tester

LABULK 0335 Intelligent Tapped Density Tester P/N 033598

FUNCTIONS

• All * basic functions

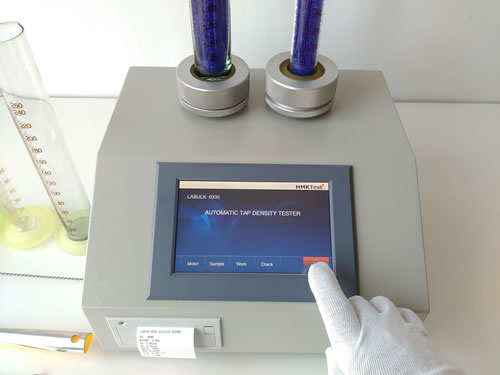

• New generation of operating system, control the operation by 7” LCD precisely
• Automatic communication check between host and modules and host and accessories.
• Alternative testing mode, tap time or number freely set
• Tap height selection, being printed on the test report
• In addition to default frequency, user can freely set any rpm to meet special requirement
• In addition to tap number, user can freely set any tap number to meet special requirement.
• During test all the set parameters are visible to understand and evaluate working conditions
• RS-232 connects host and balance, weight number automatically shown on LCD
• Simply a touch to print reports in very detail
• Flowability such as Hausner ratio or Compressibility are obtained during measure tap density
• Database saves test results—-NEW!
• Login as Admin or User—-NEW!

LABULK 0335 Intelligent Tapped Density Tester︱Tap Density Analyzer and Meter

LABULK 0335 Intelligent Tapped Density Tester︱Tap Density Analyzer and Meter

PRINCIPLE

Definition of tapped density is an increased bulk density attained after mechanically tapping a container containing the powder sample. Tapped density is obtained by mechanically tapping a graduated measuring cylinder or vessel containing a powder sample. After observing the initial powder volume or weight, the apparatus measuring cylinder or vessel is mechanically tapped, and volume or weight readings are taken until little further volume or weight change is observed. The mechanical tapping is achieved by raising the cylinder or vessel and allowing it to drop under its own weight a specified distance by either of three methods as during tapping may be preferred to minimize any possible separation of the mass during tapping down. This parameter is very important in packing the material. During tapping of the sample, the smaller particles try to fit themselves in gaps of the larger particles and hence the total volume of the powder reduces.

APPLICATIONS

Pharmaceuticals, Minerals, Pigment, Metal Powders, Catalysts, Coffee, Tea, Compounds and other powders suitable to be tested according to above mentioned international standards.

MANUFACTURER

HMKTest is a world leading manufacturer and supplier of Fisher sub sieve sizer and Tap Density Tester, selected materials and standardized components contribute to a satisfactory Tap Density Tester. Over years HMKTest has supplied to thousands of satisfactory users worldwide on cost-effective basis.

VIDEO

Tap Density Tester
