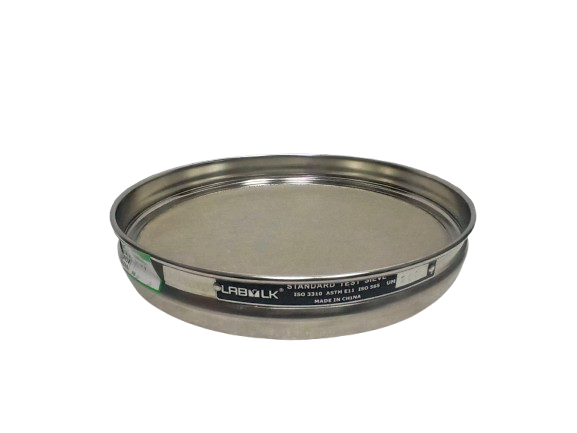

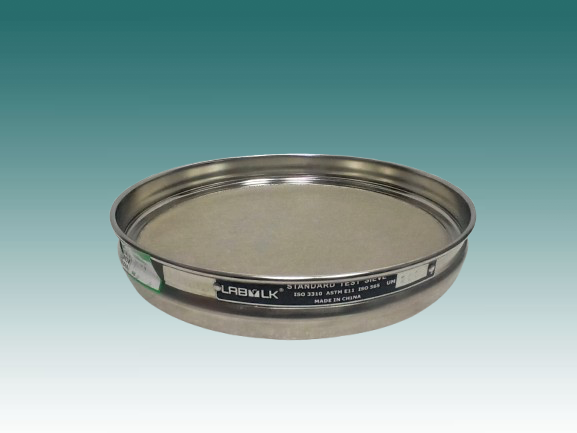

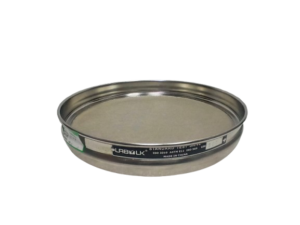

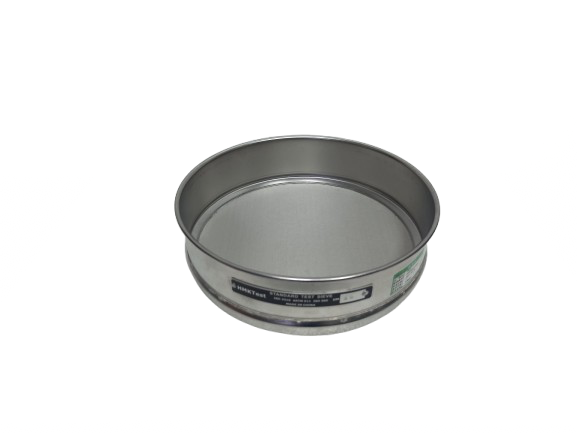

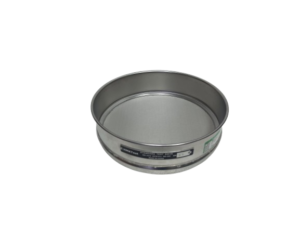

HMK-BS1-200. Standard Test Sieve

Aug 13,2019

hmk-bs1-200-standard-test-sieve

hmk-bs1-200-standard-test-sieve



hmk-bs1-200-standard-test-sieve

hmk-bs1-200-standard-test-sieve

Overview

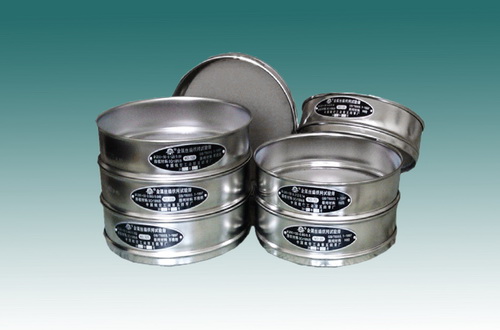

HMK-BS1-200 Standard Test Sieve is diveded into Metal Wire Cloth Test Sieve and Perforated Metal Plate Test Sieve by screen surface material.

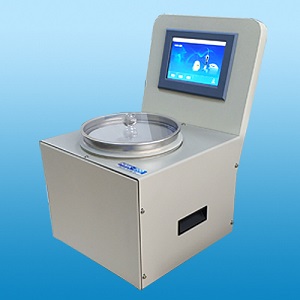

HMK-BS1-200 Standard Test Sieve for HMK-200 Air Jet Sieve

HMK-BS1-200 Standard Test Sieve for HMK-200 Air Jet Sieve

  • Metal Wire Cloth Test Sieve is manufactured according to ISO3310-1 Test Sieves–Technical Requirements and Testing – Part 1: Test Sieves of Metal Wire Cloth.The mesh size is 2.36mm-0.038mm,completely meet international standards ISO3310-1：1990 R20/3,R20,R40/3
  • Perforated Metal Plate Test Sieve is manufactured according to Test sieves — Technical requirements and testing — Part 2: Test sieves of perforated metal plate,completely meet international standards ISO3310-2：1990 R20/3、R20、R40/3
HMK-200-1-air-jet-sieve

HMK-200-1-air-jet-sieve

Material

  • HMK-BS1-200 Standard Test Sieve wire cloth is availble to be made of brass,tin bronze or stainless steel.
  • Perforated Metal Plate Test Sieve is made of copper and produced by electrochemical machining.
  • The frame,cover and bottom is made of refined quality stainless steel.

Applications

  • HMK-BS1-200 Standard Test Sieve wire cloth is availble to be made of brass,tin bronze or stainless steel.
  • Perforated Metal Plate Test Sieve is made of copper and produced by electrochemical machining.
  • The frame,cover and bottom is made of refined quality stainless steel.

Mesh

Mesh To Micron Conversion Calculator and Chart
Mesh Microns Mesh Microns
8 2360 200 75
10 2000 230 63
12 1700 270 53
16 1180 325 45
18 1000 400 38
20 850 450 32
25 710 500 28
30 600 550 26
35 500 600 23
40 425 700 20
45 355 800 18
50 300 1000 13
60 250 1340 10
70 212 1670 8.5
80 180 2000 6.5
100 150 5000 2.6
120 125 8000 1.6
140 106 10000 1.3
170 90
